#include <qcustomplot.h>

Inheritance diagram for QCPAxisRect:

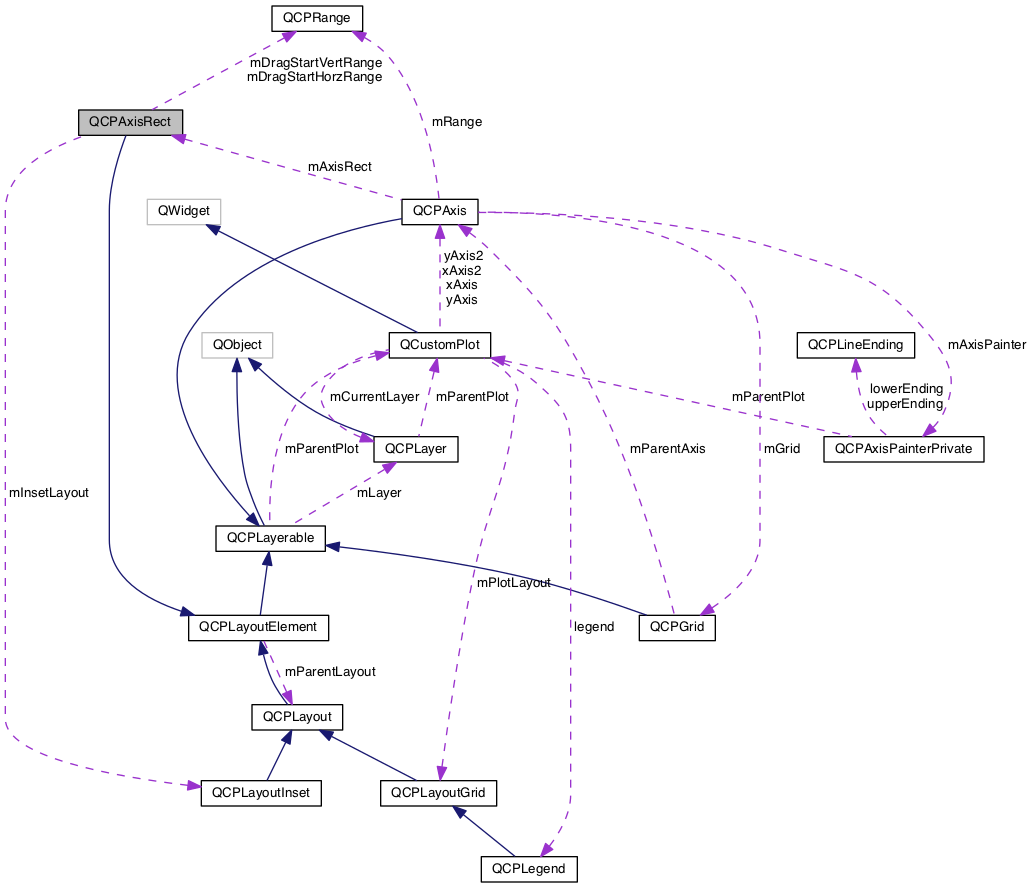

Collaboration diagram for QCPAxisRect:

Public Member Functions
	QCPAxisRect (QCustomPlot *parentPlot, bool setupDefaultAxes=true)

virtual	~QCPAxisRect ()

QPixmap	background () const

bool	backgroundScaled () const

Qt::AspectRatioMode	backgroundScaledMode () const

Qt::Orientations	rangeDrag () const

Qt::Orientations	rangeZoom () const

QCPAxis *	rangeDragAxis (Qt::Orientation orientation)

QCPAxis *	rangeZoomAxis (Qt::Orientation orientation)

double	rangeZoomFactor (Qt::Orientation orientation)

void	setBackground (const QPixmap &pm)

void	setBackground (const QPixmap &pm, bool scaled, Qt::AspectRatioMode mode=Qt::KeepAspectRatioByExpanding)

void	setBackground (const QBrush &brush)

void	setBackgroundScaled (bool scaled)

void	setBackgroundScaledMode (Qt::AspectRatioMode mode)

void	setRangeDrag (Qt::Orientations orientations)

void	setRangeZoom (Qt::Orientations orientations)

void	setRangeDragAxes (QCPAxis horizontal, QCPAxis vertical)

void	setRangeZoomAxes (QCPAxis horizontal, QCPAxis vertical)

void	setRangeZoomFactor (double horizontalFactor, double verticalFactor)

void	setRangeZoomFactor (double factor)

int	axisCount (QCPAxis::AxisType type) const

QCPAxis *	axis (QCPAxis::AxisType type, int index=0) const

QList< QCPAxis * >	axes (QCPAxis::AxisTypes types) const

QList< QCPAxis * >	axes () const

QCPAxis *	addAxis (QCPAxis::AxisType type, QCPAxis *axis=0)

QList< QCPAxis * >	addAxes (QCPAxis::AxisTypes types)

bool	removeAxis (QCPAxis *axis)

QCPLayoutInset *	insetLayout () const

void	setupFullAxesBox (bool connectRanges=false)

QList< QCPAbstractPlottable * >	plottables () const

QList< QCPGraph * >	graphs () const

QList< QCPAbstractItem * >	items () const

int	left () const

int	right () const

int	top () const

int	bottom () const

int	width () const

int	height () const

QSize	size () const

QPoint	topLeft () const

QPoint	topRight () const

QPoint	bottomLeft () const

QPoint	bottomRight () const

QPoint	center () const

virtual void	update (UpdatePhase phase)

virtual QList< QCPLayoutElement * >	elements (bool recursive) const

Public Member Functions inherited from QCPLayoutElement
	QCPLayoutElement (QCustomPlot *parentPlot=0)

virtual	~QCPLayoutElement ()

QCPLayout *	layout () const

QRect	rect () const

QRect	outerRect () const

QMargins	margins () const

QMargins	minimumMargins () const

QCP::MarginSides	autoMargins () const

QSize	minimumSize () const

QSize	maximumSize () const

QCPMarginGroup *	marginGroup (QCP::MarginSide side) const

QHash< QCP::MarginSide, QCPMarginGroup * >	marginGroups () const

void	setOuterRect (const QRect &rect)

void	setMargins (const QMargins &margins)

void	setMinimumMargins (const QMargins &margins)

void	setAutoMargins (QCP::MarginSides sides)

void	setMinimumSize (const QSize &size)

void	setMinimumSize (int width, int height)

void	setMaximumSize (const QSize &size)

void	setMaximumSize (int width, int height)

void	setMarginGroup (QCP::MarginSides sides, QCPMarginGroup *group)

virtual QSize	minimumSizeHint () const

virtual QSize	maximumSizeHint () const

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const

Public Member Functions inherited from QCPLayerable
	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

	~QCPLayerable ()

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setAntialiased (bool enabled)

bool	realVisibility () const

Protected Member Functions
virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const

virtual void	draw (QCPPainter *painter)

virtual int	calculateAutoMargin (QCP::MarginSide side)

virtual void	mousePressEvent (QMouseEvent *event)

virtual void	mouseMoveEvent (QMouseEvent *event)

virtual void	mouseReleaseEvent (QMouseEvent *event)

virtual void	wheelEvent (QWheelEvent *event)

void	drawBackground (QCPPainter *painter)

void	updateAxesOffset (QCPAxis::AxisType type)

Protected Member Functions inherited from QCPLayoutElement
virtual void	mouseDoubleClickEvent (QMouseEvent *event)

virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

Protected Member Functions inherited from QCPLayerable
virtual QCP::Interaction	selectionCategory () const

virtual QRect	clipRect () const

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged)

virtual void	deselectEvent (bool *selectionStateChanged)

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

Protected Attributes
QBrush	mBackgroundBrush

QPixmap	mBackgroundPixmap

QPixmap	mScaledBackgroundPixmap

bool	mBackgroundScaled

Qt::AspectRatioMode	mBackgroundScaledMode

QCPLayoutInset *	mInsetLayout

Qt::Orientations	mRangeDrag

Qt::Orientations	mRangeZoom

QPointer< QCPAxis >	mRangeDragHorzAxis

QPointer< QCPAxis >	mRangeDragVertAxis

QPointer< QCPAxis >	mRangeZoomHorzAxis

QPointer< QCPAxis >	mRangeZoomVertAxis

double	mRangeZoomFactorHorz

double	mRangeZoomFactorVert

QCPRange	mDragStartHorzRange

QCPRange	mDragStartVertRange

QCP::AntialiasedElements	mAADragBackup

QCP::AntialiasedElements	mNotAADragBackup

QPoint	mDragStart

bool	mDragging

QHash< QCPAxis::AxisType, QList< QCPAxis * > >	mAxes

Protected Attributes inherited from QCPLayoutElement
QCPLayout *	mParentLayout

QSize	mMinimumSize

QSize	mMaximumSize

QRect	mRect

QRect	mOuterRect

QMargins	mMargins

QMargins	mMinimumMargins

QCP::MarginSides	mAutoMargins

QHash< QCP::MarginSide, QCPMarginGroup * >	mMarginGroups

Protected Attributes inherited from QCPLayerable
bool	mVisible

QCustomPlot *	mParentPlot

QPointer< QCPLayerable >	mParentLayerable

QCPLayer *	mLayer

bool	mAntialiased

Friends
class	QCustomPlot

Additional Inherited Members
Public Types inherited from QCPLayoutElement
enum	UpdatePhase { upPreparation, upMargins, upLayout }

Signals inherited from QCPLayerable
void	layerChanged (QCPLayer *newLayer)

Detailed Description

Holds multiple axes and arranges them in a rectangular shape.

This class represents an axis rect, a rectangular area that is bounded on all sides with an arbitrary number of axes.

Initially QCustomPlot has one axis rect, accessible via QCustomPlot::axisRect(). However, the layout system allows to have multiple axis rects, e.g. arranged in a grid layout (QCustomPlot::plotLayout).

By default, QCPAxisRect comes with four axes, at bottom, top, left and right. They can be accessed via axis by providing the respective axis type (QCPAxis::AxisType) and index. If you need all axes in the axis rect, use axes. The top and right axes are set to be invisible initially (QCPAxis::setVisible). To add more axes to a side, use addAxis or addAxes. To remove an axis, use removeAxis.

The axis rect layerable itself only draws a background pixmap or color, if specified (setBackground). It is placed on the "background" layer initially (see QCPLayer for an explanation of the QCustomPlot layer system). The axes that are held by the axis rect can be placed on other layers, independently of the axis rect.

Every axis rect has a child layout of type QCPLayoutInset. It is accessible via insetLayout and can be used to have other layout elements (or even other layouts with multiple elements) hovering inside the axis rect.

If an axis rect is clicked and dragged, it processes this by moving certain axis ranges. The behaviour can be controlled with setRangeDrag and setRangeDragAxes. If the mouse wheel is scrolled while the cursor is on the axis rect, certain axes are scaled. This is controllable via setRangeZoom, setRangeZoomAxes and setRangeZoomFactor. These interactions are only enabled if QCustomPlot::setInteractions contains QCP::iRangeDrag and QCP::iRangeZoom.

Overview of the spacings and paddings that define the geometry of an axis. The dashed line on the far left indicates the viewport/widget border.

Definition at line 1972 of file qcustomplot.h.

Constructor & Destructor Documentation

QCPAxisRect	(	QCustomPlot *	parentPlot,
		bool	setupDefaultAxes = `true`
	)

explicit

Creates a QCPAxisRect instance and sets default values. An axis is added for each of the four sides, the top and right axes are set invisible initially.

Definition at line 11726 of file qcustomplot.cpp.

References addAxis(), QCPAxis::atBottom, QCPAxis::atLeft, QCPAxis::atRight, QCPAxis::atTop, QCPAxis::grid(), QCPLayerable::initializeParentPlot(), mAxes, mInsetLayout, QCPLayerable::mParentPlot, QCPLayoutElement::setMinimumMargins(), QCPLayoutElement::setMinimumSize(), QCPLayerable::setParentLayerable(), setRangeDragAxes(), setRangeZoomAxes(), QCPLayerable::setVisible(), and QCPGrid::setZeroLinePen().

~QCPAxisRect ( )

virtual

Definition at line 11770 of file qcustomplot.cpp.

References axes(), mInsetLayout, and removeAxis().

Member Function Documentation

QList< QCPAxis * > addAxes ( QCPAxis::AxisTypes types )

Adds a new axis with addAxis to each axis rect side specified in types. This may be an or-combination of QCPAxis::AxisType, so axes can be added to multiple sides at once.

Returns a list of the added axes.

See Also: addAxis, setupFullAxesBox

Definition at line 11907 of file qcustomplot.cpp.

References addAxis(), QCPAxis::atBottom, QCPAxis::atLeft, QCPAxis::atRight, and QCPAxis::atTop.

QCPAxis * addAxis	(	QCPAxis::AxisType	type,
		QCPAxis *	axis = `0`
	)

Adds a new axis to the axis rect side specified with type, and returns it. If axis is 0, a new QCPAxis instance is created internally.

You may inject QCPAxis instances (or sublasses of QCPAxis) by setting axis to an axis that was previously created outside QCustomPlot. It is important to note that QCustomPlot takes ownership of the axis, so you may not delete it afterwards. Further, the axis must have been created with this axis rect as parent and with the same axis type as specified in type. If this is not the case, a debug output is generated, the axis is not added, and the method returns 0.

This method can not be used to move axis between axis rects. The same axis instance must not be added multiple times to the same or different axis rects.

If an axis rect side already contains one or more axes, the lower and upper endings of the new axis (QCPAxis::setLowerEnding, QCPAxis::setUpperEnding) are set to QCPLineEnding::esHalfBar.

See Also: addAxes, setupFullAxesBox

Definition at line 11865 of file qcustomplot.cpp.

References QCPAxis::atBottom, QCPAxis::atRight, axes(), axis(), QCPAxis::axisRect(), QCPAxis::axisType(), QCPLineEnding::esHalfBar, mAxes, QCPAxis::setLowerEnding(), QCPAxis::setUpperEnding(), and size().

Referenced by addAxes(), QCPAxisRect(), and setupFullAxesBox().

void applyDefaultAntialiasingHint ( QCPPainter * painter ) const

protectedvirtual

Reimplemented from QCPLayoutElement.

Definition at line 12167 of file qcustomplot.cpp.

References QCPPainter::setAntialiasing().

QList< QCPAxis * > axes ( QCPAxis::AxisTypes types ) const

Returns all axes on the axis rect sides specified with types.

types may be a single QCPAxis::AxisType or an or-combination, to get the axes of multiple sides.

See Also: axis

Definition at line 11816 of file qcustomplot.cpp.

References QCPAxis::atBottom, QCPAxis::atLeft, QCPAxis::atRight, QCPAxis::atTop, and mAxes.

Referenced by QCustomPlot::rescaleAxes(), and QCustomPlot::selectedAxes().

QList< QCPAxis * > axes ( ) const

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Returns all axes of this axis rect.

Definition at line 11834 of file qcustomplot.cpp.

References mAxes.

Referenced by addAxis(), update(), and ~QCPAxisRect().

QCPAxis * axis	(	QCPAxis::AxisType	type,
		int	index = `0`
	)		const

Returns the axis with the given index on the axis rect side specified with type.

See Also: axisCount, axes

Definition at line 11795 of file qcustomplot.cpp.

References mAxes.

Referenced by addAxis(), QCPColorScaleAxisRectPrivate::axisSelectableChanged(), QCPColorScaleAxisRectPrivate::axisSelectionChanged(), QCPColorScaleAxisRectPrivate::QCPColorScaleAxisRectPrivate(), QCustomPlot::QCustomPlot(), removeAxis(), and setupFullAxesBox().

int axisCount ( QCPAxis::AxisType type ) const

Returns the number of axes on the axis rect side specified with type.

See Also: axis

Definition at line 11785 of file qcustomplot.cpp.

References mAxes.

Referenced by setupFullAxesBox().

QPixmap background ( ) const

inline

Definition at line 1987 of file qcustomplot.h.

bool backgroundScaled ( ) const

inline

Definition at line 1988 of file qcustomplot.h.

Qt::AspectRatioMode backgroundScaledMode ( ) const

inline

Definition at line 1989 of file qcustomplot.h.

int bottom ( ) const

inline

Returns the pixel position of the bottom border of this axis rect. Margins are not taken into account here, so the returned value is with respect to the inner rect.

Definition at line 2028 of file qcustomplot.h.

Referenced by QCPAxis::coordToPixel(), QCPGrid::drawGridLines(), QCPGrid::drawSubGridLines(), QCPGraph::lowerFillBasePoint(), QCPAxis::pixelToCoord(), and QCPGraph::upperFillBasePoint().

QPoint bottomLeft ( ) const

inline

Returns the bottom left corner of this axis rect in pixels. Margins are not taken into account here, so the returned value is with respect to the inner rect.

Definition at line 2034 of file qcustomplot.h.

QPoint bottomRight ( ) const

inline

Returns the bottom right corner of this axis rect in pixels. Margins are not taken into account here, so the returned value is with respect to the inner rect.

Definition at line 2035 of file qcustomplot.h.

int calculateAutoMargin ( QCP::MarginSide side )

protectedvirtual

Reimplemented from QCPLayoutElement.

Definition at line 12452 of file qcustomplot.cpp.

References QCPAxis::marginSideToAxisType(), QCPLayoutElement::mAutoMargins, mAxes, and updateAxesOffset().

QPoint center ( ) const

inline

Returns the center of this axis rect in pixels. Margins are not taken into account here, so the returned value is with respect to the inner rect.

Definition at line 2036 of file qcustomplot.h.

void draw ( QCPPainter * painter )

protectedvirtual

Reimplemented from QCPLayoutElement.

Reimplemented in QCPColorScaleAxisRectPrivate.

Definition at line 12173 of file qcustomplot.cpp.

References drawBackground().

Referenced by QCPColorScaleAxisRectPrivate::draw().

void drawBackground ( QCPPainter * painter )

protected

Definition at line 12397 of file qcustomplot.cpp.

References mBackgroundBrush, mBackgroundPixmap, mBackgroundScaled, mBackgroundScaledMode, QCPLayoutElement::mRect, and mScaledBackgroundPixmap.

Referenced by draw().

QList< QCPLayoutElement * > elements ( bool recursive ) const

virtual

Returns a list of all child elements in this layout element. If recursive is true, all sub-child elements are included in the list, too.

Warning: There may be entries with value 0 in the returned list. (For example, QCPLayoutGrid may have empty cells which yield 0 at the respective index.)

Reimplemented from QCPLayoutElement.

Definition at line 12154 of file qcustomplot.cpp.

References QCPLayout::elements(), and mInsetLayout.

QList< QCPGraph * > graphs ( ) const

Returns a list of all the graphs that are associated with this axis rect.

A graph is considered associated with an axis rect if its key or value axis (or both) is in this axis rect.

See Also: plottables, items

Definition at line 12071 of file qcustomplot.cpp.

References QCustomPlot::mGraphs, and QCPLayerable::mParentPlot.

int height ( ) const

inline

Returns the pixel height of this axis rect. Margins are not taken into account here, so the returned value is with respect to the inner rect.

Definition at line 2030 of file qcustomplot.h.

Referenced by QCPAxis::coordToPixel(), QCPBarsGroup::getPixelSpacing(), QCPAxis::pixelToCoord(), and QCPAxis::setScaleRatio().

QCPLayoutInset * insetLayout ( ) const

inline

Returns the inset layout of this axis rect. It can be used to place other layout elements (or even layouts with multiple other elements) inside/on top of an axis rect.

See Also: QCPLayoutInset

Definition at line 2017 of file qcustomplot.h.

Referenced by QCustomPlot::QCustomPlot().

QList< QCPAbstractItem * > items ( ) const

Returns a list of all the items that are associated with this axis rect.

An item is considered associated with an axis rect if any of its positions has key or value axis set to an axis that is in this axis rect, or if any of its positions has QCPItemPosition::setAxisRect set to the axis rect, or if the clip axis rect (QCPAbstractItem::setClipAxisRect) is set to this axis rect.

See Also: plottables, graphs

Definition at line 12093 of file qcustomplot.cpp.

References QCustomPlot::mItems, and QCPLayerable::mParentPlot.

int left ( ) const

inline

Returns the pixel position of the left border of this axis rect. Margins are not taken into account here, so the returned value is with respect to the inner rect.

Definition at line 2025 of file qcustomplot.h.

Referenced by QCPAxis::coordToPixel(), QCPGrid::drawGridLines(), QCPGrid::drawSubGridLines(), QCPGraph::lowerFillBasePoint(), QCPAxis::pixelToCoord(), and QCPGraph::upperFillBasePoint().

void mouseMoveEvent ( QMouseEvent * event )

protectedvirtual

This event is called, if the mouse is moved inside the outer rect of this layout element.

Reimplemented from QCPLayoutElement.

Definition at line 12508 of file qcustomplot.cpp.

References QCP::aeAll, QCustomPlot::interactions(), QCP::iRangeDrag, QCPRange::lower, mDragging, mDragStart, mDragStartHorzRange, mDragStartVertRange, QCPLayerable::mParentPlot, mRangeDrag, mRangeDragHorzAxis, mRangeDragVertAxis, QCustomPlot::noAntialiasingOnDrag(), QCustomPlot::replot(), QCustomPlot::setNotAntialiasedElements(), QCPAxis::stLinear, QCPAxis::stLogarithmic, and QCPRange::upper.

void mousePressEvent ( QMouseEvent * event )

protectedvirtual

This event is called, if the mouse was pressed while being inside the outer rect of this layout element.

Reimplemented from QCPLayoutElement.

Definition at line 12478 of file qcustomplot.cpp.

References QCustomPlot::antialiasedElements(), QCustomPlot::interactions(), QCP::iRangeDrag, mAADragBackup, mDragging, mDragStart, mDragStartHorzRange, mDragStartVertRange, mNotAADragBackup, QCPLayerable::mParentPlot, mRangeDragHorzAxis, mRangeDragVertAxis, QCustomPlot::noAntialiasingOnDrag(), and QCustomPlot::notAntialiasedElements().

void mouseReleaseEvent ( QMouseEvent * event )

protectedvirtual

This event is called, if the mouse was previously pressed inside the outer rect of this layout element and is now released.

Reimplemented from QCPLayoutElement.

Definition at line 12553 of file qcustomplot.cpp.

References mAADragBackup, mDragging, mNotAADragBackup, QCPLayerable::mParentPlot, QCustomPlot::noAntialiasingOnDrag(), QCustomPlot::setAntialiasedElements(), and QCustomPlot::setNotAntialiasedElements().

QList< QCPAbstractPlottable * > plottables ( ) const

Returns a list of all the plottables that are associated with this axis rect.

A plottable is considered associated with an axis rect if its key or value axis (or both) is in this axis rect.

See Also: graphs, items

Definition at line 12051 of file qcustomplot.cpp.

References QCPLayerable::mParentPlot, and QCustomPlot::mPlottables.

Qt::Orientations rangeDrag ( ) const

inline

Definition at line 1990 of file qcustomplot.h.

QCPAxis * rangeDragAxis ( Qt::Orientation orientation )

Returns the range drag axis of the orientation provided.

See Also: setRangeDragAxes

Definition at line 12262 of file qcustomplot.cpp.

References mRangeDragHorzAxis, and mRangeDragVertAxis.

Qt::Orientations rangeZoom ( ) const

inline

Definition at line 1991 of file qcustomplot.h.

QCPAxis * rangeZoomAxis ( Qt::Orientation orientation )

Returns the range zoom axis of the orientation provided.

See Also: setRangeZoomAxes

Definition at line 12272 of file qcustomplot.cpp.

References mRangeZoomHorzAxis, and mRangeZoomVertAxis.

double rangeZoomFactor ( Qt::Orientation orientation )

Returns the range zoom factor of the orientation provided.

See Also: setRangeZoomFactor

Definition at line 12282 of file qcustomplot.cpp.

References mRangeZoomFactorHorz, and mRangeZoomFactorVert.

bool removeAxis ( QCPAxis * axis )

Removes the specified axis from the axis rect and deletes it.

Returns true on success, i.e. if axis was a valid axis in this axis rect.

See Also: addAxis

Definition at line 11928 of file qcustomplot.cpp.

References axis(), QCustomPlot::axisRemoved(), mAxes, and QCPLayerable::parentPlot().

Referenced by ~QCPAxisRect().

int right ( ) const

inline

Returns the pixel position of the right border of this axis rect. Margins are not taken into account here, so the returned value is with respect to the inner rect.

Definition at line 2026 of file qcustomplot.h.

Referenced by QCPAxis::coordToPixel(), QCPGrid::drawGridLines(), QCPGrid::drawSubGridLines(), QCPGraph::lowerFillBasePoint(), and QCPGraph::upperFillBasePoint().

void setBackground ( const QPixmap & pm )

Sets pm as the axis background pixmap. The axis background pixmap will be drawn inside the axis rect. Since axis rects place themselves on the "background" layer by default, the axis rect backgrounds are usually drawn below everything else.

For cases where the provided pixmap doesn't have the same size as the axis rect, scaling can be enabled with setBackgroundScaled and the scaling mode (i.e. whether and how the aspect ratio is preserved) can be set with setBackgroundScaledMode. To set all these options in one call, consider using the overloaded version of this function.

Below the pixmap, the axis rect may be optionally filled with a brush, if specified with setBackground(const QBrush &brush).

See Also: setBackgroundScaled, setBackgroundScaledMode, setBackground(const QBrush &brush)

Definition at line 12193 of file qcustomplot.cpp.

References mBackgroundPixmap, and mScaledBackgroundPixmap.

void setBackground	(	const QPixmap &	pm,
		bool	scaled,
		Qt::AspectRatioMode	mode = `Qt::KeepAspectRatioByExpanding`
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Allows setting the background pixmap of the axis rect, whether it shall be scaled and how it shall be scaled in one call.

See Also: setBackground(const QPixmap &pm), setBackgroundScaled, setBackgroundScaledMode

Definition at line 12224 of file qcustomplot.cpp.

References mBackgroundPixmap, mBackgroundScaled, mBackgroundScaledMode, and mScaledBackgroundPixmap.

void setBackground ( const QBrush & brush )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Sets brush as the background brush. The axis rect background will be filled with this brush. Since axis rects place themselves on the "background" layer by default, the axis rect backgrounds are usually drawn below everything else.

The brush will be drawn before (under) any background pixmap, which may be specified with setBackground(const QPixmap &pm).

To disable drawing of a background brush, set brush to Qt::NoBrush.

See Also: setBackground(const QPixmap &pm)

Definition at line 12212 of file qcustomplot.cpp.

References mBackgroundBrush.

void setBackgroundScaled ( bool scaled )

Sets whether the axis background pixmap shall be scaled to fit the axis rect or not. If scaled is set to true, you may control whether and how the aspect ratio of the original pixmap is preserved with setBackgroundScaledMode.

Note that the scaled version of the original pixmap is buffered, so there is no performance penalty on replots. (Except when the axis rect dimensions are changed continuously.)

See Also: setBackground, setBackgroundScaledMode

Definition at line 12242 of file qcustomplot.cpp.

References mBackgroundScaled.

void setBackgroundScaledMode ( Qt::AspectRatioMode mode )

If scaling of the axis background pixmap is enabled (setBackgroundScaled), use this function to define whether and how the aspect ratio of the original pixmap passed to setBackground is preserved.

See Also: setBackground, setBackgroundScaled

Definition at line 12252 of file qcustomplot.cpp.

References mBackgroundScaledMode.

void setRangeDrag ( Qt::Orientations orientations )

Sets which axis orientation may be range dragged by the user with mouse interaction. What orientation corresponds to which specific axis can be set with setRangeDragAxes(QCPAxis *horizontal, QCPAxis *vertical). By default, the horizontal axis is the bottom axis (xAxis) and the vertical axis is the left axis (yAxis).

To disable range dragging entirely, pass 0 as orientations or remove QCP::iRangeDrag from QCustomPlot::setInteractions. To enable range dragging for both directions, pass Qt::Horizontal | Qt::Vertical as orientations.

In addition to setting orientations to a non-zero value, make sure QCustomPlot::setInteractions contains QCP::iRangeDrag to enable the range dragging interaction.

See Also: setRangeZoom, setRangeDragAxes, QCustomPlot::setNoAntialiasingOnDrag

Definition at line 12303 of file qcustomplot.cpp.

References mRangeDrag.

void setRangeDragAxes	(	QCPAxis *	horizontal,
		QCPAxis *	vertical
	)

Sets the axes whose range will be dragged when setRangeDrag enables mouse range dragging on the QCustomPlot widget.

See Also: setRangeZoomAxes

Definition at line 12334 of file qcustomplot.cpp.

References mRangeDragHorzAxis, and mRangeDragVertAxis.

Referenced by QCPAxisRect().

void setRangeZoom ( Qt::Orientations orientations )

Sets which axis orientation may be zoomed by the user with the mouse wheel. What orientation corresponds to which specific axis can be set with setRangeZoomAxes(QCPAxis *horizontal, QCPAxis *vertical). By default, the horizontal axis is the bottom axis (xAxis) and the vertical axis is the left axis (yAxis).

To disable range zooming entirely, pass 0 as orientations or remove QCP::iRangeZoom from QCustomPlot::setInteractions. To enable range zooming for both directions, pass Qt::Horizontal | Qt::Vertical as orientations.

In addition to setting orientations to a non-zero value, make sure QCustomPlot::setInteractions contains QCP::iRangeZoom to enable the range zooming interaction.

See Also: setRangeZoomFactor, setRangeZoomAxes, setRangeDrag

Definition at line 12323 of file qcustomplot.cpp.

References mRangeZoom.

void setRangeZoomAxes	(	QCPAxis *	horizontal,
		QCPAxis *	vertical
	)

Sets the axes whose range will be zoomed when setRangeZoom enables mouse wheel zooming on the QCustomPlot widget. The two axes can be zoomed with different strengths, when different factors are passed to setRangeZoomFactor(double horizontalFactor, double verticalFactor).

See Also: setRangeDragAxes

Definition at line 12347 of file qcustomplot.cpp.

References mRangeZoomHorzAxis, and mRangeZoomVertAxis.

Referenced by QCPAxisRect().

void setRangeZoomFactor	(	double	horizontalFactor,
		double	verticalFactor
	)

Sets how strong one rotation step of the mouse wheel zooms, when range zoom was activated with setRangeZoom. The two parameters horizontalFactor and verticalFactor provide a way to let the horizontal axis zoom at different rates than the vertical axis. Which axis is horizontal and which is vertical, can be set with setRangeZoomAxes.

When the zoom factor is greater than one, scrolling the mouse wheel backwards (towards the user) will zoom in (make the currently visible range smaller). For zoom factors smaller than one, the same scrolling direction will zoom out.

Definition at line 12363 of file qcustomplot.cpp.

References mRangeZoomFactorHorz, and mRangeZoomFactorVert.

void setRangeZoomFactor ( double factor )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Sets both the horizontal and vertical zoom factor.

Definition at line 12373 of file qcustomplot.cpp.

References mRangeZoomFactorHorz, and mRangeZoomFactorVert.

void setupFullAxesBox ( bool connectRanges = false )

Convenience function to create an axis on each side that doesn't have any axes yet and set their visibility to true. Further, the top/right axes are assigned the following properties of the bottom/left axes:

range (QCPAxis::setRange)
range reversed (QCPAxis::setRangeReversed)
scale type (QCPAxis::setScaleType)
scale log base (QCPAxis::setScaleLogBase)
ticks (QCPAxis::setTicks)
auto (major) tick count (QCPAxis::setAutoTickCount)
sub tick count (QCPAxis::setSubTickCount)
auto sub ticks (QCPAxis::setAutoSubTicks)
tick step (QCPAxis::setTickStep)
auto tick step (QCPAxis::setAutoTickStep)
number format (QCPAxis::setNumberFormat)
number precision (QCPAxis::setNumberPrecision)
tick label type (QCPAxis::setTickLabelType)
date time format (QCPAxis::setDateTimeFormat)
date time spec (QCPAxis::setDateTimeSpec)

Tick labels (QCPAxis::setTickLabels) of the right and top axes are set to false.

If connectRanges is true, the rangeChanged signals of the bottom and left axes are connected to the QCPAxis::setRange slots of the top and right axes.

Definition at line 11974 of file qcustomplot.cpp.

References addAxis(), QCPAxis::atBottom, QCPAxis::atLeft, QCPAxis::atRight, QCPAxis::atTop, QCPAxis::autoSubTicks(), QCPAxis::autoTickCount(), QCPAxis::autoTickStep(), axis(), axisCount(), QCPAxis::dateTimeFormat(), QCPAxis::dateTimeSpec(), QCPAxis::numberFormat(), QCPAxis::numberPrecision(), QCPAxis::range(), QCPAxis::rangeReversed(), QCPAxis::scaleLogBase(), QCPAxis::scaleType(), QCPAxis::setAutoSubTicks(), QCPAxis::setAutoTickCount(), QCPAxis::setAutoTickStep(), QCPAxis::setDateTimeFormat(), QCPAxis::setDateTimeSpec(), QCPAxis::setNumberFormat(), QCPAxis::setNumberPrecision(), QCPAxis::setRange(), QCPAxis::setRangeReversed(), QCPAxis::setScaleLogBase(), QCPAxis::setScaleType(), QCPAxis::setSubTickCount(), QCPAxis::setTickLabels(), QCPAxis::setTickLabelType(), QCPAxis::setTicks(), QCPAxis::setTickStep(), QCPLayerable::setVisible(), QCPAxis::subTickCount(), QCPAxis::tickLabelType(), QCPAxis::ticks(), and QCPAxis::tickStep().

QSize size ( ) const

inline

Returns the pixel size of this axis rect. Margins are not taken into account here, so the returned value is with respect to the inner rect.

Definition at line 2031 of file qcustomplot.h.

Referenced by addAxis().

int top ( ) const

inline

Returns the pixel position of the top border of this axis rect. Margins are not taken into account here, so the returned value is with respect to the inner rect.

Definition at line 2027 of file qcustomplot.h.

Referenced by QCPAxis::coordToPixel(), QCPGrid::drawGridLines(), QCPGrid::drawSubGridLines(), QCPGraph::lowerFillBasePoint(), and QCPGraph::upperFillBasePoint().

QPoint topLeft ( ) const

inline

Returns the top left corner of this axis rect in pixels. Margins are not taken into account here, so the returned value is with respect to the inner rect.

Definition at line 2032 of file qcustomplot.h.

QPoint topRight ( ) const

inline

Returns the top right corner of this axis rect in pixels. Margins are not taken into account here, so the returned value is with respect to the inner rect.

Definition at line 2033 of file qcustomplot.h.

void update ( UpdatePhase phase )

virtual

This method is called automatically upon replot and doesn't need to be called by users of QCPAxisRect.

Calls the base class implementation to update the margins (see QCPLayoutElement::update), and finally passes the rect to the inset layout (insetLayout) and calls its QCPInsetLayout::update function.

Reimplemented from QCPLayoutElement.

Definition at line 12128 of file qcustomplot.cpp.

References axes(), mInsetLayout, QCPLayoutElement::rect(), QCPLayoutElement::setOuterRect(), QCPLayoutElement::update(), QCPLayout::update(), QCPLayoutElement::upLayout, and QCPLayoutElement::upPreparation.
